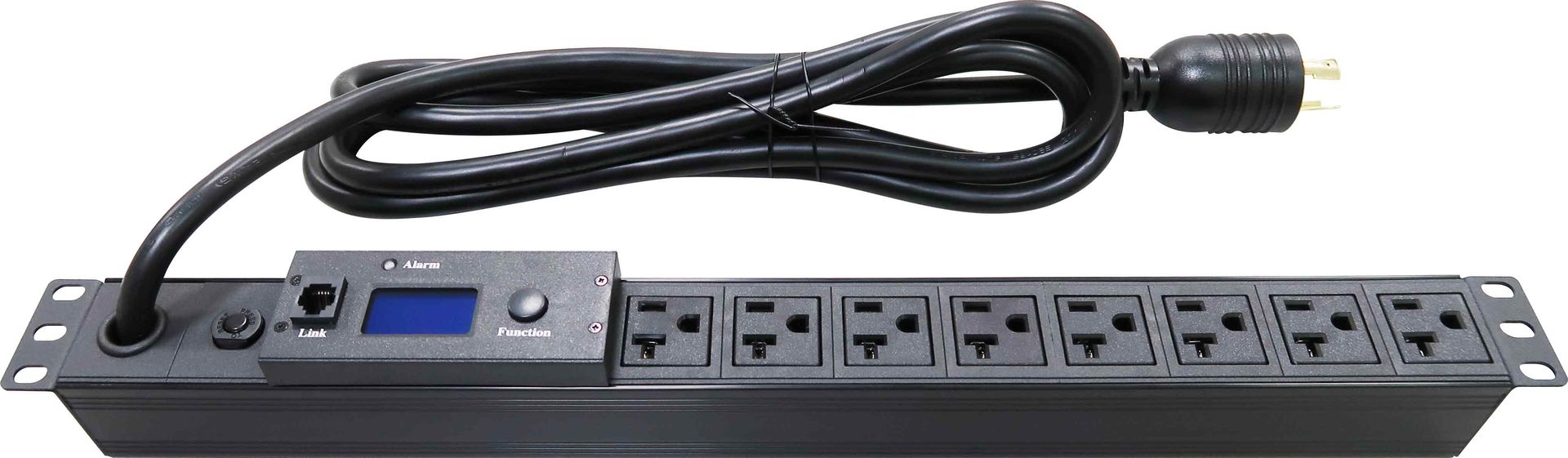

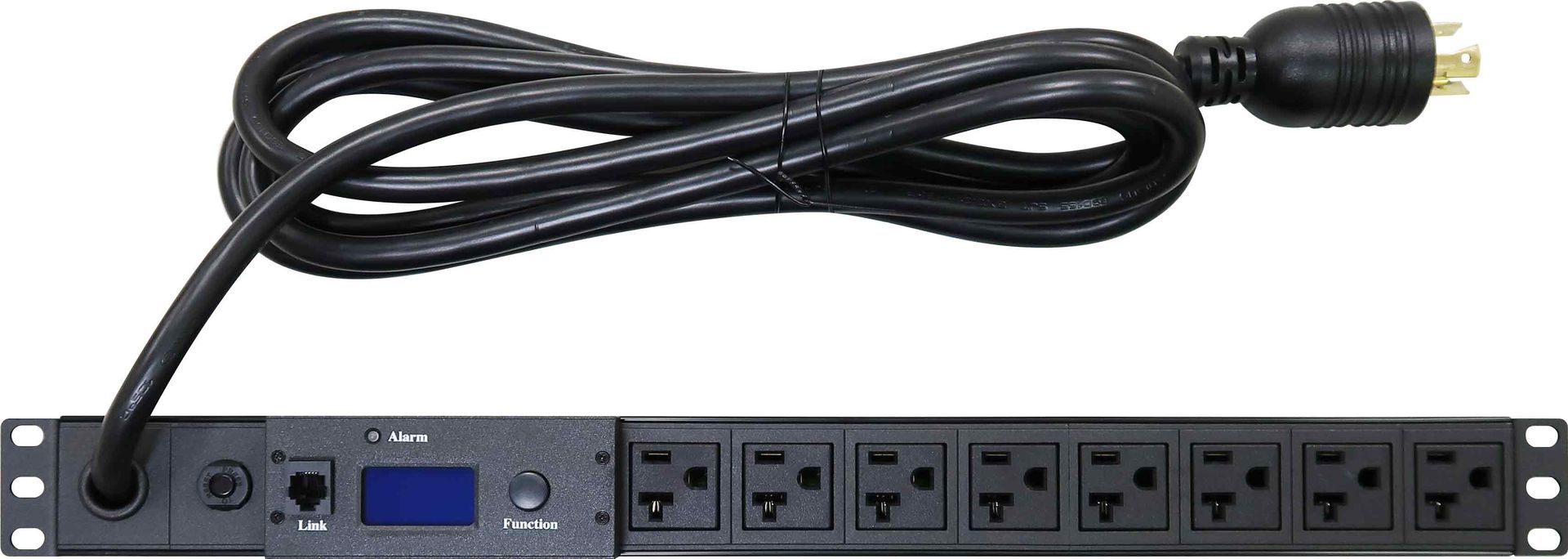

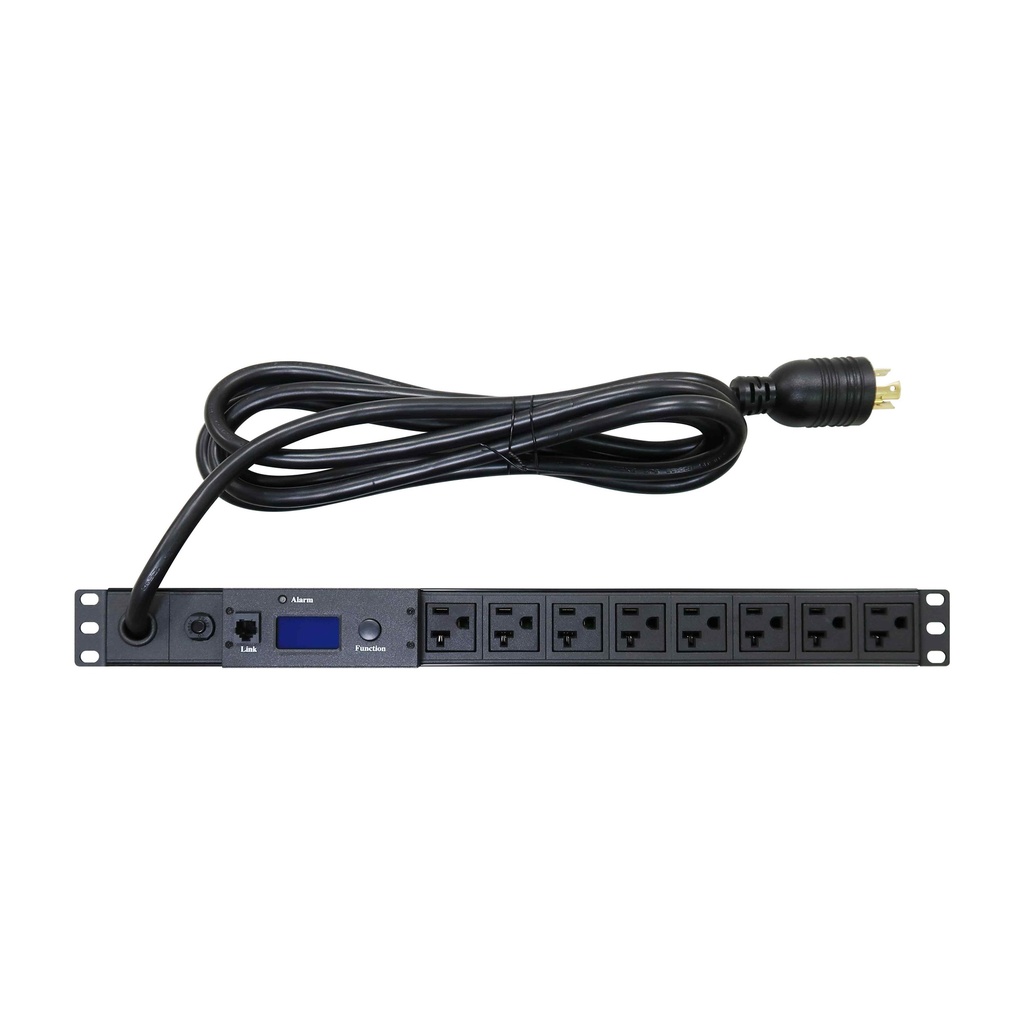

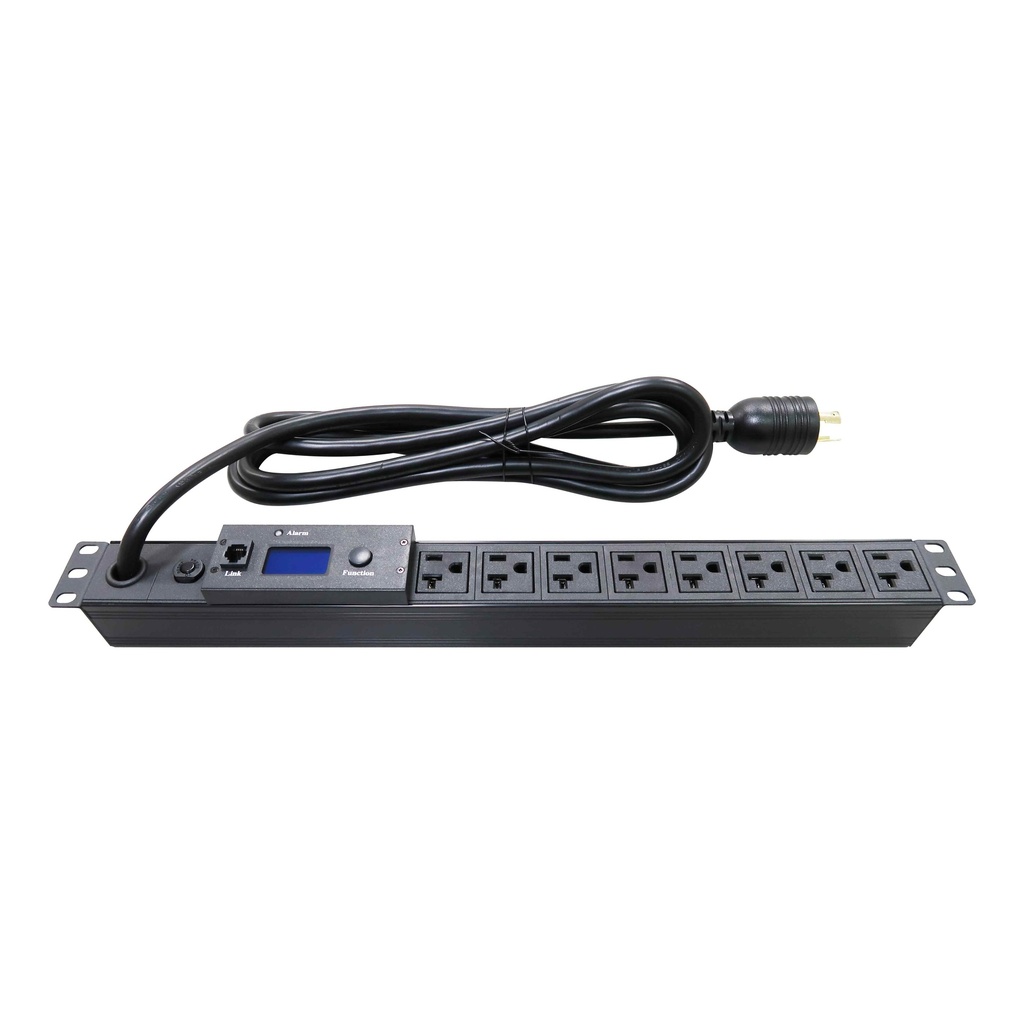

HP-8B2-20FA

HotSwap Series Products can monitor power consumption. LCD Panel display voltage, current, frequency and branch current. Function button allows setting up current and branch current alert value. Display Module is replaceable while power is supplied status. Protected by overload current circuit breaker and prevent the damage of overload.

Voltage
- 100-120V
Current
- 20A
Socket
- NEMA 5-20R
Socket / Number
- 8
Plug
- NEMA L5-20P
Materials
- Aluminum Case
Rack Form
- 19" standard racks (1U)

This combination does not exist.

Voltage: 100-120V

Current: 20A

Socket: NEMA 5-20R

Socket / Number: 8

Plug: NEMA L5-20P

Materials: Aluminum Case

Rack Form: 19" standard racks (1U)

Product Features

LCD panel can check PDU voltage, total current, frequency and branch current(30/32A models available).
Buzzer will be triggered when total current overloading.
Function button allows setting up current threshold for warning (15/16/20A models available).
Function button can set up branch current threshold for warning (30/32A models available).
Alarm LED light will keep flashing after returned to normal status from abnormal. User can check recorded maximum current.
LCD panel support 180 degrees rotated display.
Hot swapping module allows the replacement without turning off the power(*1).
Circuit breaker to prevent damages on devices by overload.
(*1) Only the manufacturer and well-trained operators allow to replace the module.

Specifications

Input Voltage	100 - 120 VAC
Maximum Input Current	20A(Maximum)
Standby Mode	5W
Power Frequency	50 / 60 Hz
Plug Type	NEMA L5-20P
Input Power	2400 VA
Socket Type	1U 8 Port NEMA 5 - 20 * 8 Branch : 1 - 8
Output Voltage	100 - 120 VAC
Max Output Current(Socket)	NEMA 5-20 : 20A(Maximum)
Max Output Current (Circuit)	20A(Maximum)
Max Output Current (Total)	20A(Maximum)
Circuit Breaker	20A Circuit Breaker * 1
Power Monitor	Three Digits LCD
Metering Precision	Current Error Rate : 1%
Materials	Aluminum Case / Digital Meter
Rack Form	19" standard racks (1U)
Dimension Unit : mm	445(L)43(W)43(H)
Weight
Power Cord Length	3 M
Temperature(Operating / Storage)	0° - 45° C / 0° - 60° C
Humidity(Operating / Storage)	0 - 90% No Condensation
