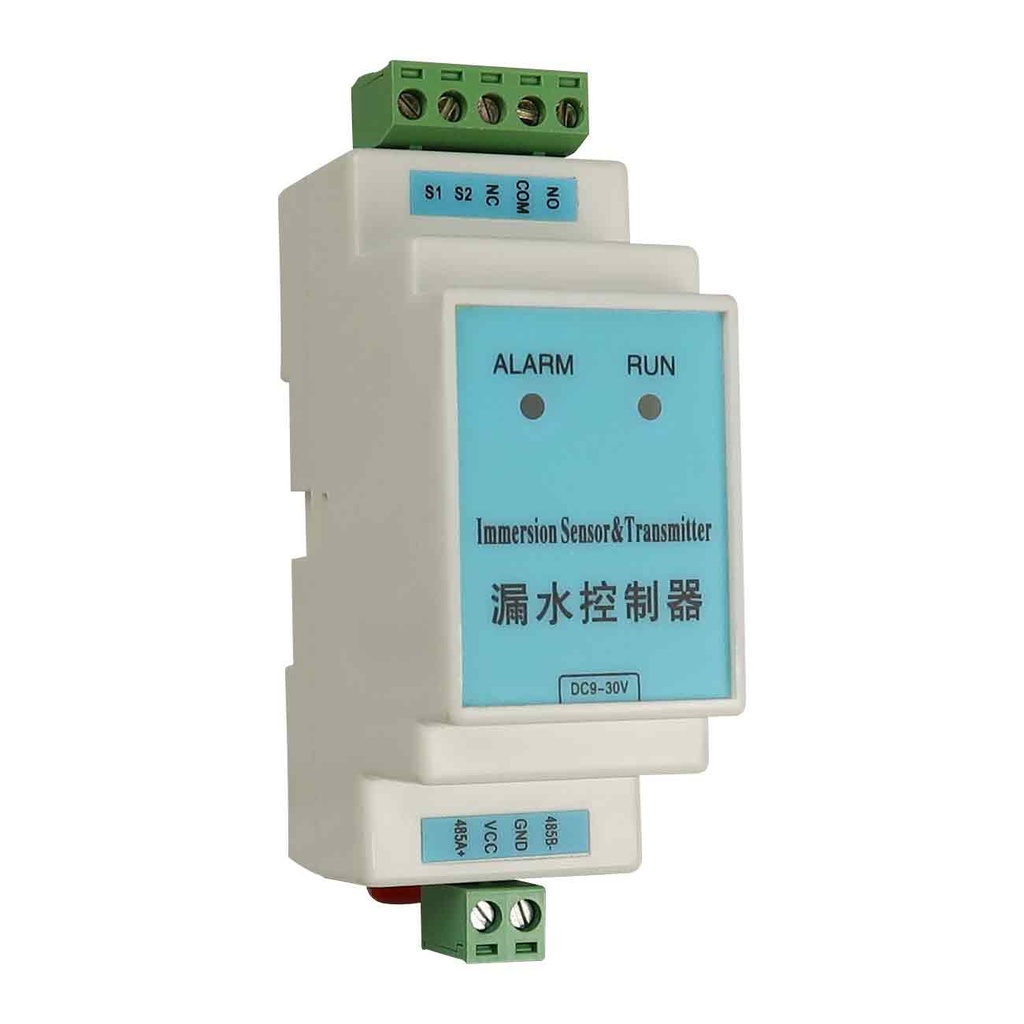

Water leakage detector
Water leak sensor is an economic, smart solution for liquid leakage detecting. It send out relay signal, no need to add more module for signal transferring and easy to be integrated with various monitoring systems for remote alarm and device control.
Product Features
- Water leak sensor is an economic, smart solution for liquid leakage detecting. It send out relay signal, no need to add more module for signal transferring and easy to be integrated with various monitoring systems for remote alarm and device control. Water leak detector support max length 200 meters to water detecting cable (two core cable). It not only can connect with sensor cables, but also can connect with other sensing pins. Once detected liquid, the sensor will trigger relay sending out NO or NC signals, can work with other signal catching systems. Water leak sensor can be applied to data center, warehouse, library, museum, factory and other locations for real-time leakage detecting. Also can monitor air filters, freezing equipment and any liquid tanks.
Specification
Power Voltage | DC9～30V |
Operating Environment | -20～50℃﹔5～95％RH（no condensation） |
Accuracy | 100％ |
Alarm Input Resistance | ≤200KΩ |
Output Type | Relay（normal open, normal close） |
Compatibility | Available to connect with sensor cables, also can work with other sensing pins. |
Distance | 200 meters. The two (2) black wires of the water detecting cable (yellow and black) must connect to S1 and S2 at the top of the water leak sensor. |
Dimension | 55*115*36mm 35mm DIN rail installation |
