WP-24P-30J
IP Metered PDU Supports internet connected your IP PDU to your PC. LCD Panel display current, voltage, and KW/H. Function button allows setting up current alert value. Display Module is replaceable while power is supplying status. Support SNMP (V1/V2/V3) and SNMP Trap; Web API (JSON format control).
| Voltage: 100-240V |
| Current: 30A |
| Socket: IEC 60320 C13 + IEC 60320 C19 |
| Socket / Number: 24 |
| Plug: NEMA L6-30P |
| Materials: Iron Case |
| Rack Form: 0U standard racks |
Product Features
- LCD panel can check PDU voltage, PDU-level current, branch current(30/32A models available), frequency and IP address.
- Five direction navigation button allows setting up total and branch (30/32A models available) current threshold for warning.
- Buzzer will be triggered when total current overloading.
- Alarm LED light will keep flashing after returned to normal status from abnormal. User can check recorded maximum current by the navigation button.
- Administrator can Check voltage, current, frequency, power factor and kilowatt per hour(kWh) through web browser from remote sites.
- Support Email encryption, and SMS message sending for warning.
- SNMP V1, V2C, and V3 supported. User can check device status through SNMP View.
- SNMP Trap supported.
- Support Syslog, user can collect device data by Syslog Server.
- Enable IP and MAC filters to prevent malicious accessing.
- Record operations and alarm events for checking.
- Support online firmware update.
- LCD panel support 180 degrees rotated display.
- Hot swapping module allows the replacement without turning off the power(*1).
- Circuit breaker to prevent damages on devices by overload.
- Support 10/100Mbps Ethernet speed.
- (*1) Only the manufacturer and well-trained operators allow to replace the module.
Specifications
| Input Voltage | 100 - 240 VAC |
Maximum Input Current | 30A (Maximum) |
Standby Mode | 5W |
Power Frequency | 50 / 60 Hz |
Plug Type | NEMA L6-30P |
Input Power | 7200 VA |
Socket Type | 0U 24 Port IEC 60320 C13 * 20+IEC 60320 C19 * 4 Branch B1 : 1 - 12 (C13*10+C19*2) Branch B2 : 13 - 24 (C13*10+C19*2) |
Output Voltage | 100 - 240 VAC |
Max Output Current(Socket) | IEC 60320 C13 : 10A (Maximum) IEC 60320 C19 : 15A (Maximum) |
Max Output Current (Circuit) | 15A (Maximum) |
Max Output Current (Total) | 30A (Maximum) |
Circuit Breaker | 15A Circuit Breaker * 2 |
Power Monitor | Three Digits LCD |
Metering Precision | Current Error Rate : 1% |
| Materials | Iron Box / Digital Meter |
Rack Form | 0U standard racks |
Dimension Unit : mm | 1070(H)*51(W)*48(D) |
Weight | |
Power Cord Length | 3 M |
Temperature(Operating / Storage) | 0° - 45° C / 0° - 60° C |
| Humidity(Operating / Storage) | 0 - 90% No Condensation |

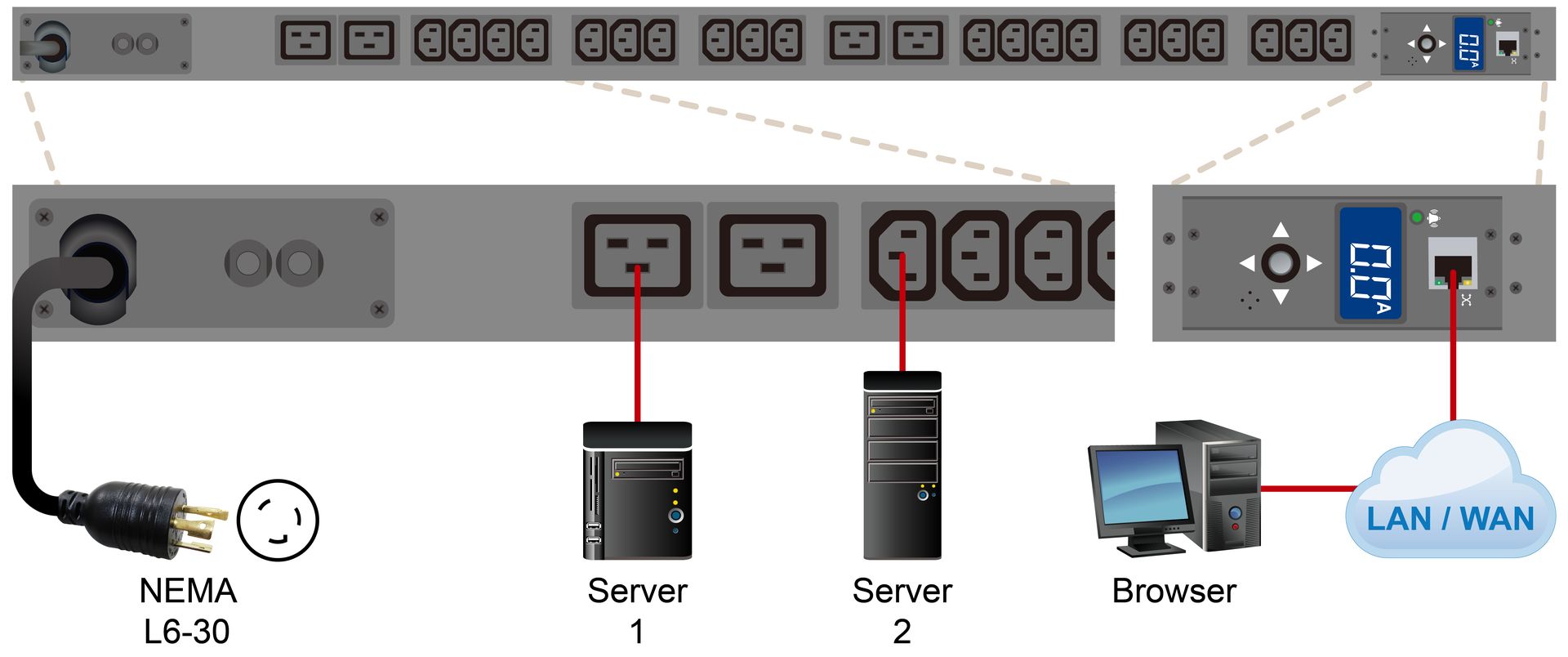

Diagram
DM
Operation Manual
| 20231129-IP PDU-user manual-en |
