ZDHW-24B2-20E

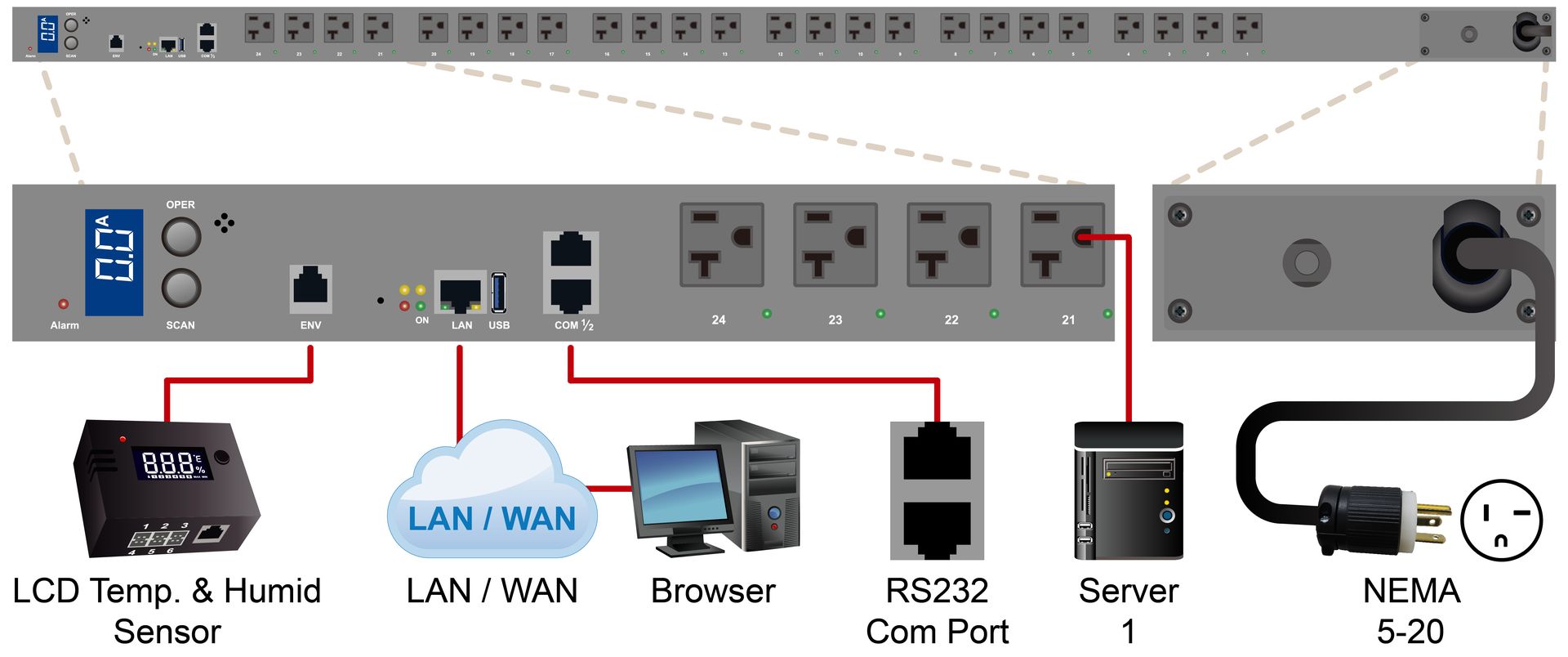

ZD Series Products have built-in power chip, which helps with the acquisition of voltage, current, power, Watts, and power factor-related information; LCD panel can display voltage, current and IP. They can also operating power switch through LCD panel. You may add Temperature and humidity sensors controlling power switch depending on the changes of environmental temperature and humidity. Support SNMP (V1/V2/V3) and SNMP Trap; Web API (JSON format control).

Voltage
- 100-120V
Current
- 20A
Socket
- NEMA 5-20R
Socket / Number
- 24
Plug
- NEMA 5-20P
Materials
- Iron Case
Rack Form
- 0U standard racks

This combination does not exist.

Voltage: 100-120V

Current: 20A

Socket: NEMA 5-20R

Socket / Number: 24

Plug: NEMA 5-20P

Materials: Iron Case

Rack Form: 0U standard racks

Product Features

LCD panel can display and check voltage, total current, current per outlet, and IP address
The buttons of LCD panel support outlet control.
LED indicators display outlet ON/OFF status.
IP accessible allow administrator manage equipment from remote sites.
Checking voltage, current, frequency, power factor, kilowatt per hour(kWh), current per outlet, temperature and humidity through web browser.
Allow to create many accounts to control and manage different power outlet for different user.
Buzzer will be triggered when power current alert.
Support sequential start to prevent all outlets turned on at the same time to cause overloading.
Support group setting to outlets.
Support Wake on LAN.
Set power schedule to each outlet for turning ON/OFF/Reboot.
Optional temperature and humidity sensor(▲) for power switch control depending on environment changes.
Support Web API (JSON format control) and SNMP control, administrator can develop own program according to hardware features.
Support Email encryption, and SMS message sending for warning.
SNMP V1, V2C, and V3 supported. User can check device status through SNMP View.
SNMP Trap supported.
Support Syslog, user can collect device data by Syslog Server.
Enable IP and MAC filters to prevent malicious accessing.
Record operations and alarm events for checking.
Support online firmware update.
Circuit breaker to prevent damages on devices by overload.
Support 10/100Mbps Ethernet speed.
Support 2 COM ports for terminal and API control, and RS232 to IP conversion.
(▲) Optional sensor of temperature and humidity.

Specifications

Input Voltage	100 - 120 VAC
Maximum Input Current	20A (Maximum)
Standby Mode	25W
Power Frequency	50 / 60 Hz
Plug Type	NEMA 5-20P
Input Power	7200 VA
Socket Type	0U 24 Port NEMA 5-20R * 24 迴路 : 1 - 24
Output Voltage	100 - 120 VAC
Max Output Current(Socket)	NEMA 5-20R : 20A(Maximum)
Max Output Current (Circuit)	20A (Maximum)
Max Output Current (Total)	20A (Maximum)
Circuit Breaker	20A Circuit Breaker * 1
Power Monitor	Three Digits LCD
Metering Precision	Current Error Rate : 1%
Materials	Iron Case / Digital Meter
Rack Form	0U standard racks
Dimension Unit : mm	1413(H)50(W)82(D)
Weight
Power Cord Length	3 M
Temperature(Operating / Storage)	0° - 45° C / 0° - 60° C
Humidity(Operating / Storage)	0 - 90% No Condensation
