iHMI
Remote graphic environmental control host
Embedded remote environmental control system with fully customer-independent "customized" graphic control display, equipment monitoring and warning mode.
The built-in graphic control is based on HTML5. You can operate the full graphical graphic control function in the browser without installing a program. It can remotely monitor environmental conditions such as temperature and humidity, smoke, water level, UPS and power, and can integrate SNMP/RS485 to monitor other server and sensor status, through real-time alarm mode, send warnings through email, SMS, phone, WeChat, LINE, etc.
Industrial grade graphic control system-
iHMI series host
Embedded system design and flexible installation methods including rack, wall hanging.

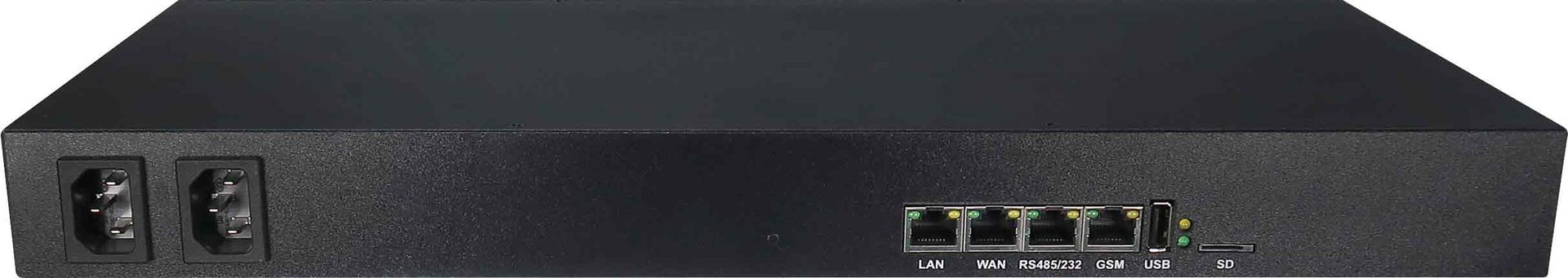

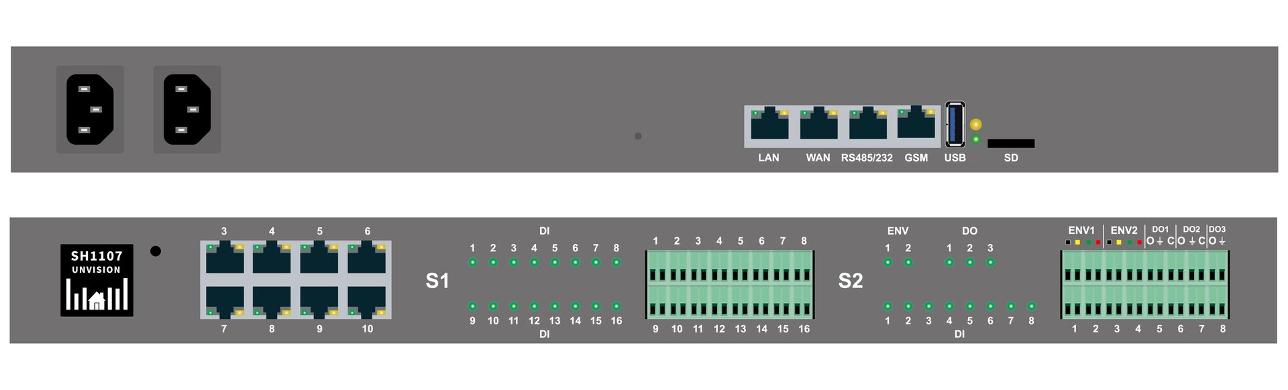

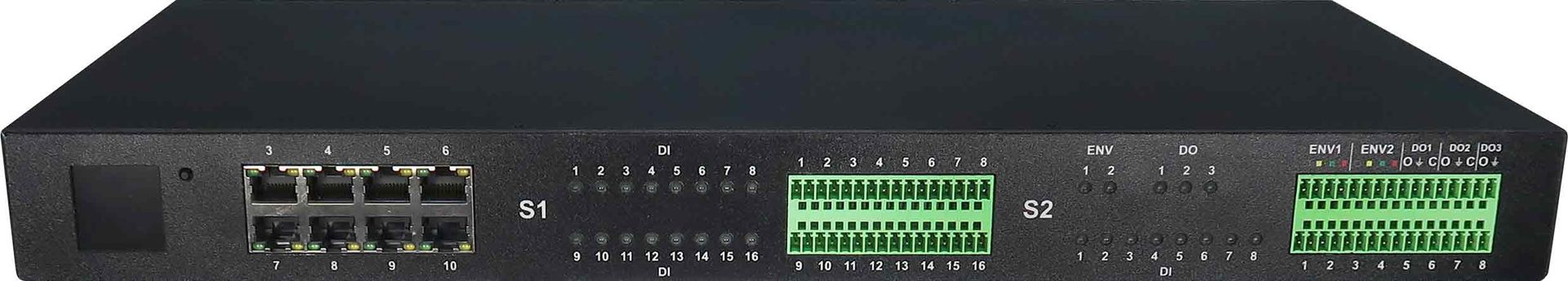

iHMI rack installation
Suitable for 1U cabinet installation. With 19-inch rack accessories, one iHmi host and EB-08 expansion host can be installed in a standard 1U rack space.
435 x 216 x 45 mm (LxWxH)
-40°C~75°C wide range temperature, no fear of extreme temperatures
EC/EN 61000-4 industrial grade protection, high standard electromagnetic anti-interference alloy shell, IP30 alloy.
9~30VDC Back up power input protection, support multiple power inputs at the same time
Timeproof Japanese capacitor industrial components, using electroless nickel gold PCB circuit board
Standard rack, DIN track and wall-hanging installation make the installation of environmental control equipment easier and more reliable
The alloy shell is sturdy, durable and efficient in heat dissipation, making it easy to place in a compact industrial control cabinet.
Poweful extension peripheral accessories-iHMI series extension
Connect to the iHmi environmental control host through the GSM/Sensor integrated port, providing flexible installation methods such as rack, and wall hanging.
iHMI External GSM extension
iHmi is equipped with GSM extension to accomplish sending alarm SMS and voice functions
150x70x38mm
Flexible sensing peripheral accessories-iHMI series extension
Connect to the iHMI environmental control host or EHUB expansion through the Sensor integration port, providing flexible installation methods such as rack, and wall hanging.

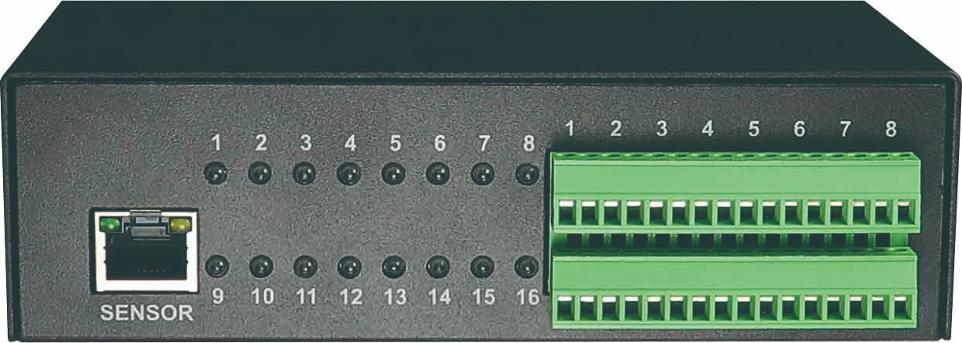

16DI sensor
Dry contact 16 input
150x70x38mm

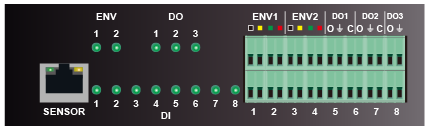

8DI3DO2TH sensor
Connect 8 ports temperature and humidity sensor rods
150x70x38mm

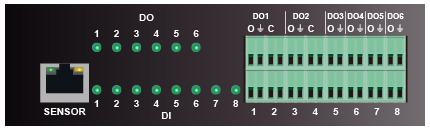

8DI6DO sensor
8 ports dry contact inputs/6 ports dry contact outputs
150x70x38mm
Product Features-Graphic control
Full graphic operation of web pages
HTML5 has a built-in web server and operates in the browser without installing any plug-in.

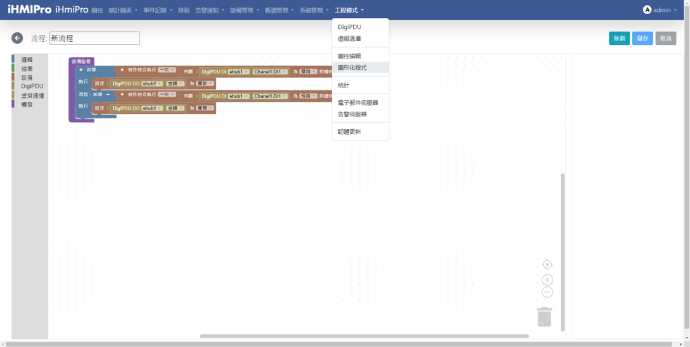

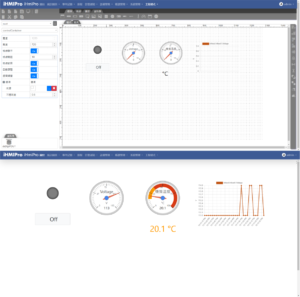

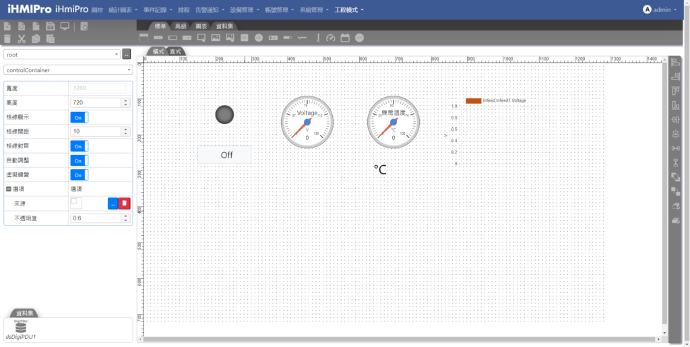

Use graphics drag and drop-down menu assignment in project mode to design front-end graphic control interface. In the graphic control mode, the graphic control screen can be displayed in real time, and is connected to the browser remotely, the local end is connected to the touch monitor through HDMI and USB for direct monitoring.
Product Features-Alarm

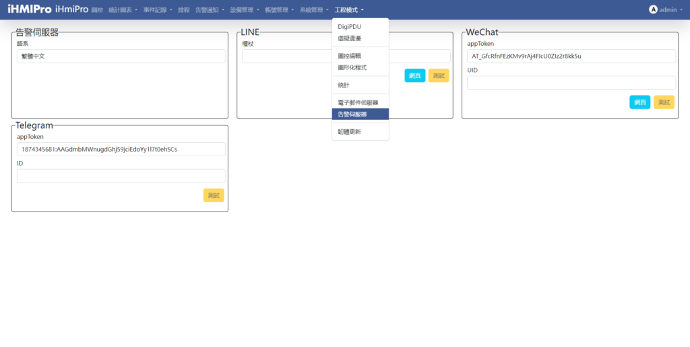

Send alarm messages through SMS, voice, LINE, WeChat and Telegram, etc.
LINE
Telegram
Email
SMS
Voice
Product Features-Testing

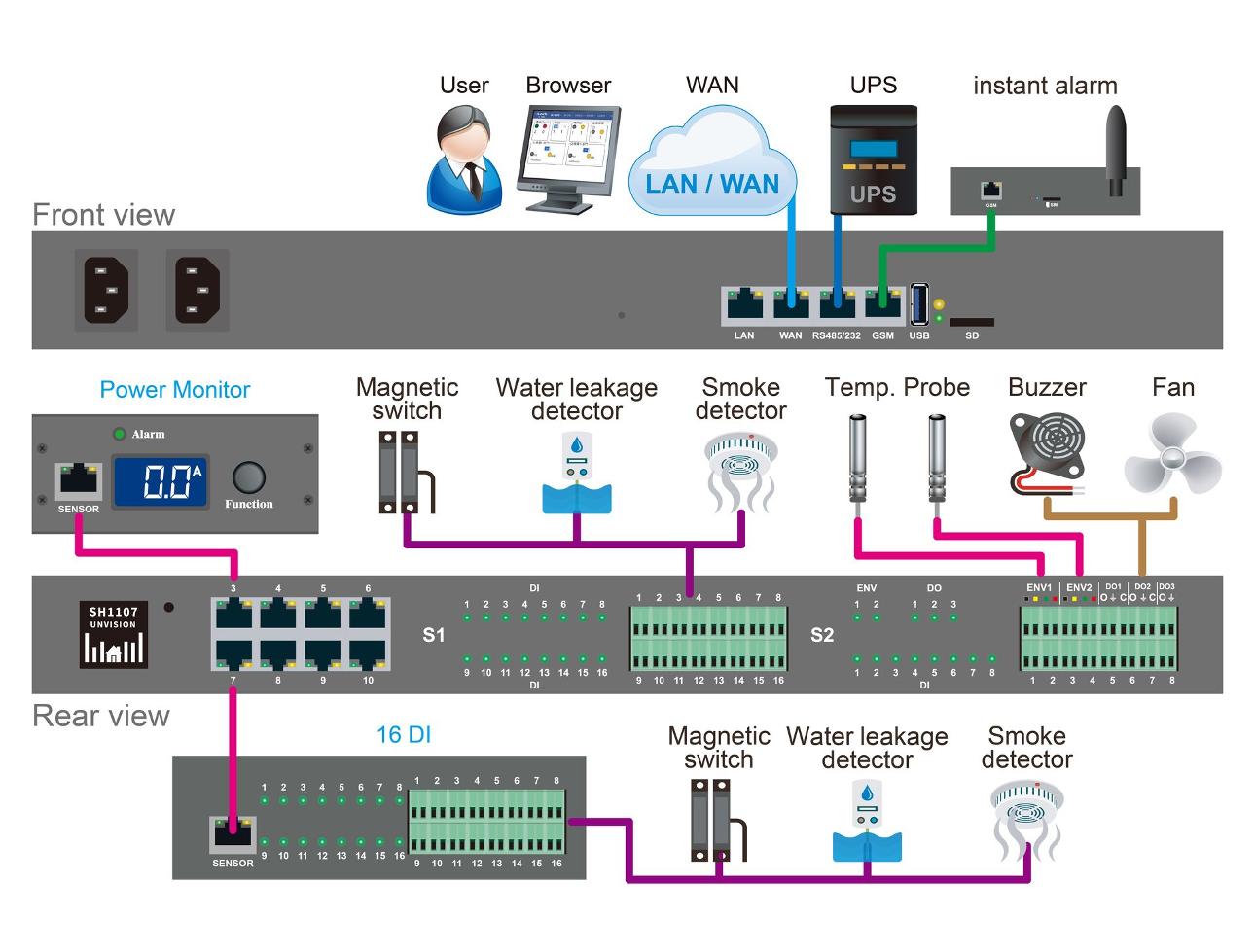

Connect many kinds of sensors, up to 100M
Environment: temperature, temperature and humidity, water immersion, leakage belt, wind speed, oil level, water level
Electricity: digital meters, voltage monitoring, current monitoring
Security: vibration detection, dry contact, infrared motion detection, access control magnetic spring, smoke detection
Integrate third-party sensors:
Read third-party sensor values through RS-485 interface
Convert third-party sensor signals through 4~20mA
Product Features-Expansion

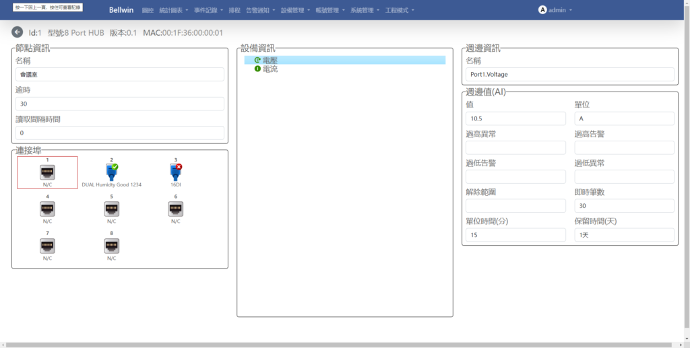

Up to 99 EHUB series can be connected, and the network connection distance between each unit can be up to 100 meters.

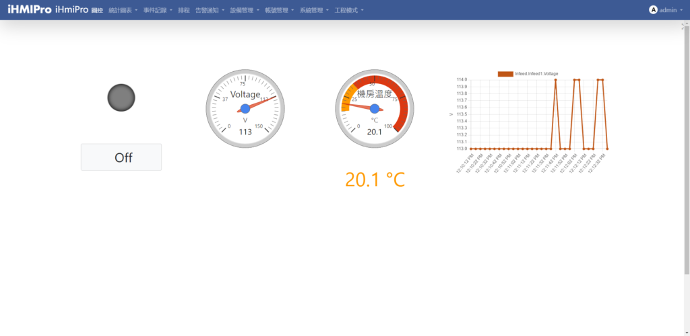

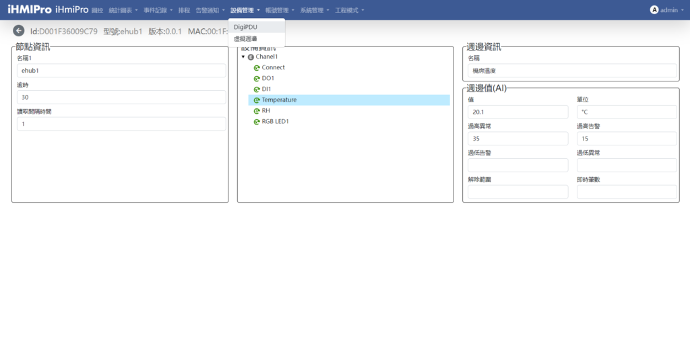

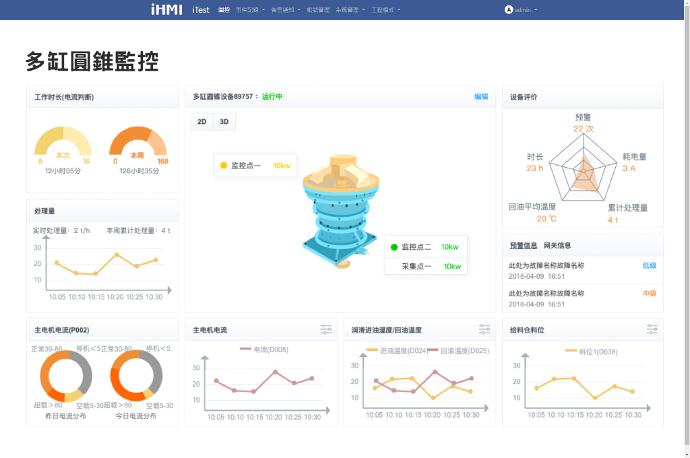

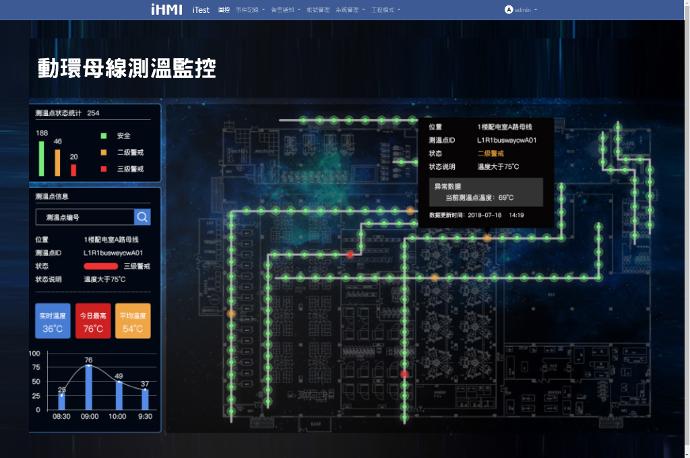

Graphic control interface
Web page full-image menu operation

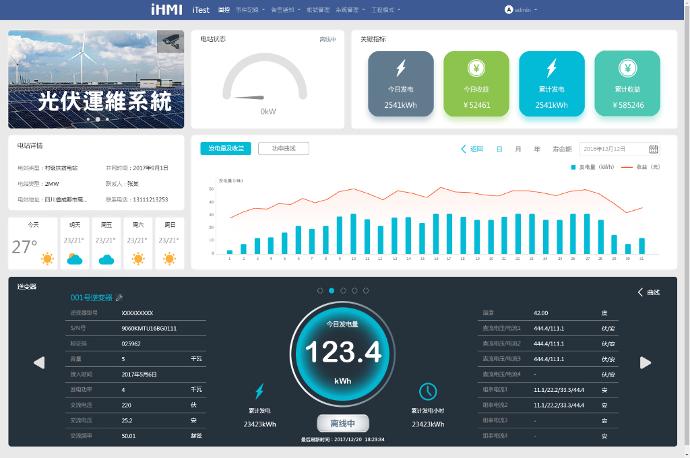

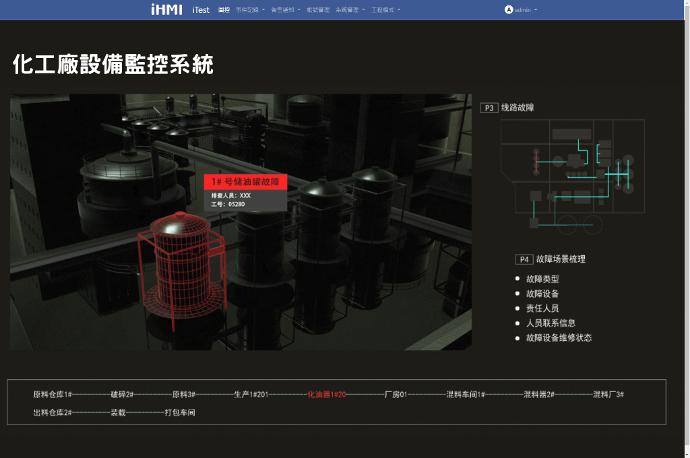

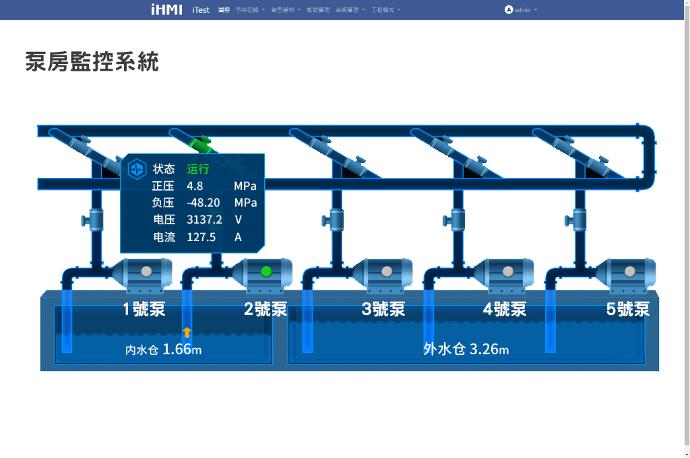

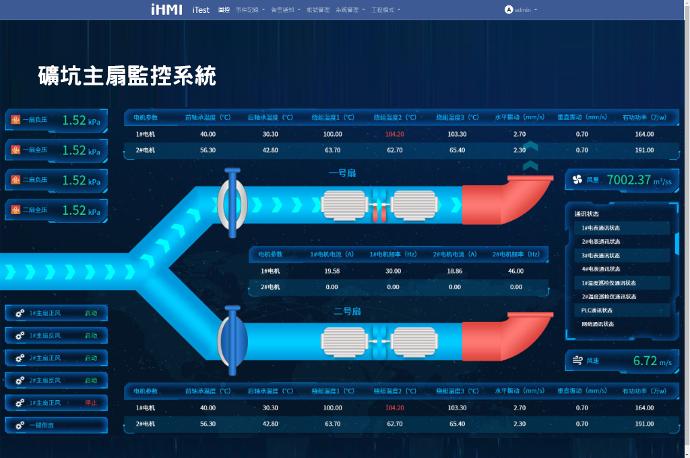

Application display
What can iHMI do？
Download
Link to the product

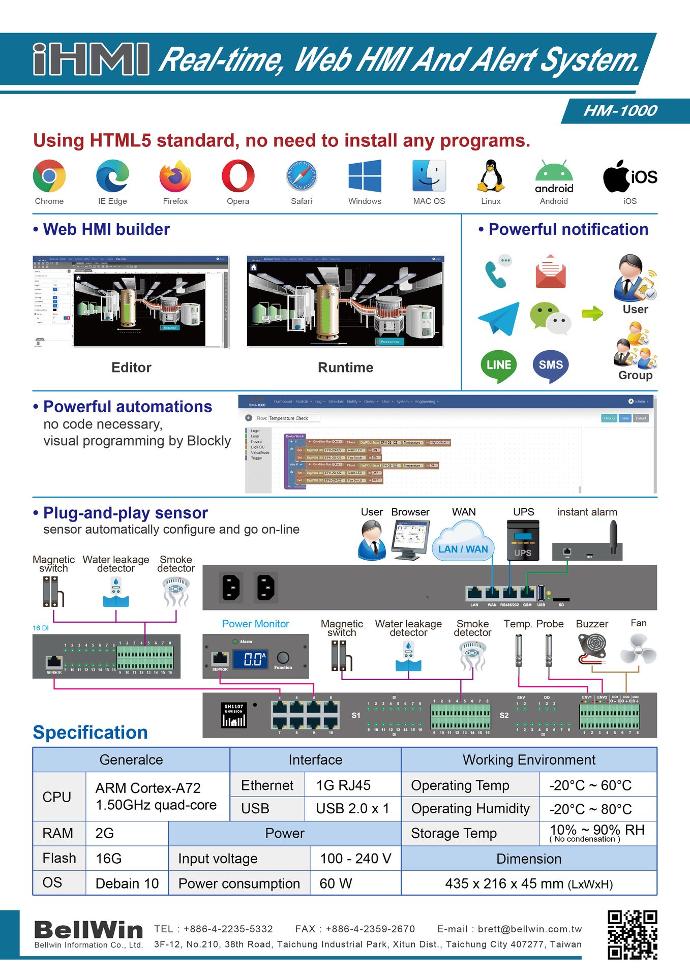

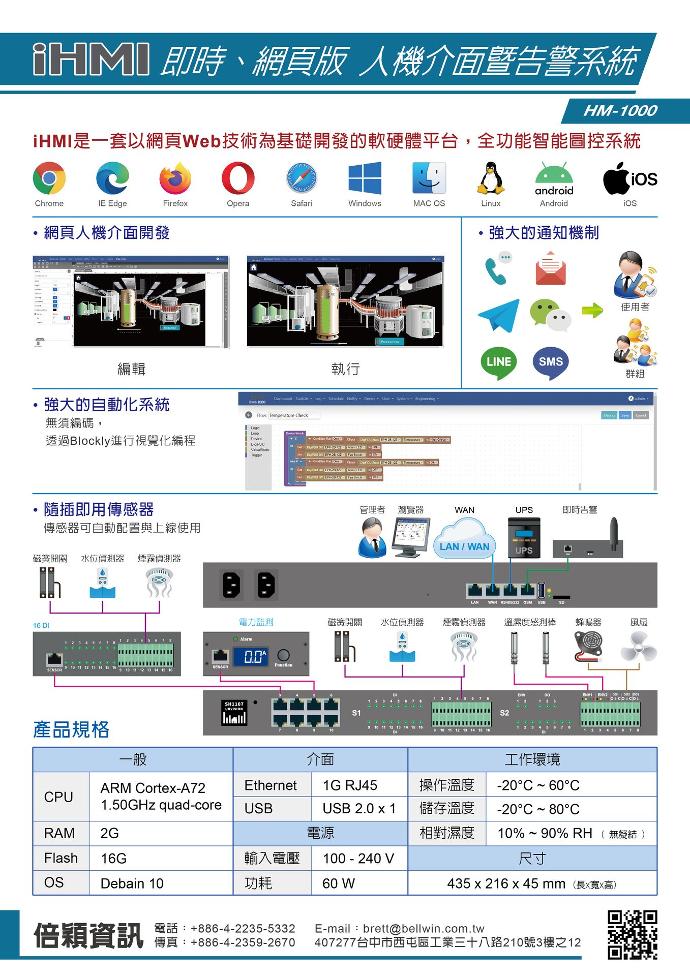

iHMI Product
Real-time, web version human-machine interface and alarm system
iHMI is a set of software and hardware platform developed based on web technology,
a full-featured intelligent graphic control system Full-featured intelligent graphic control system
