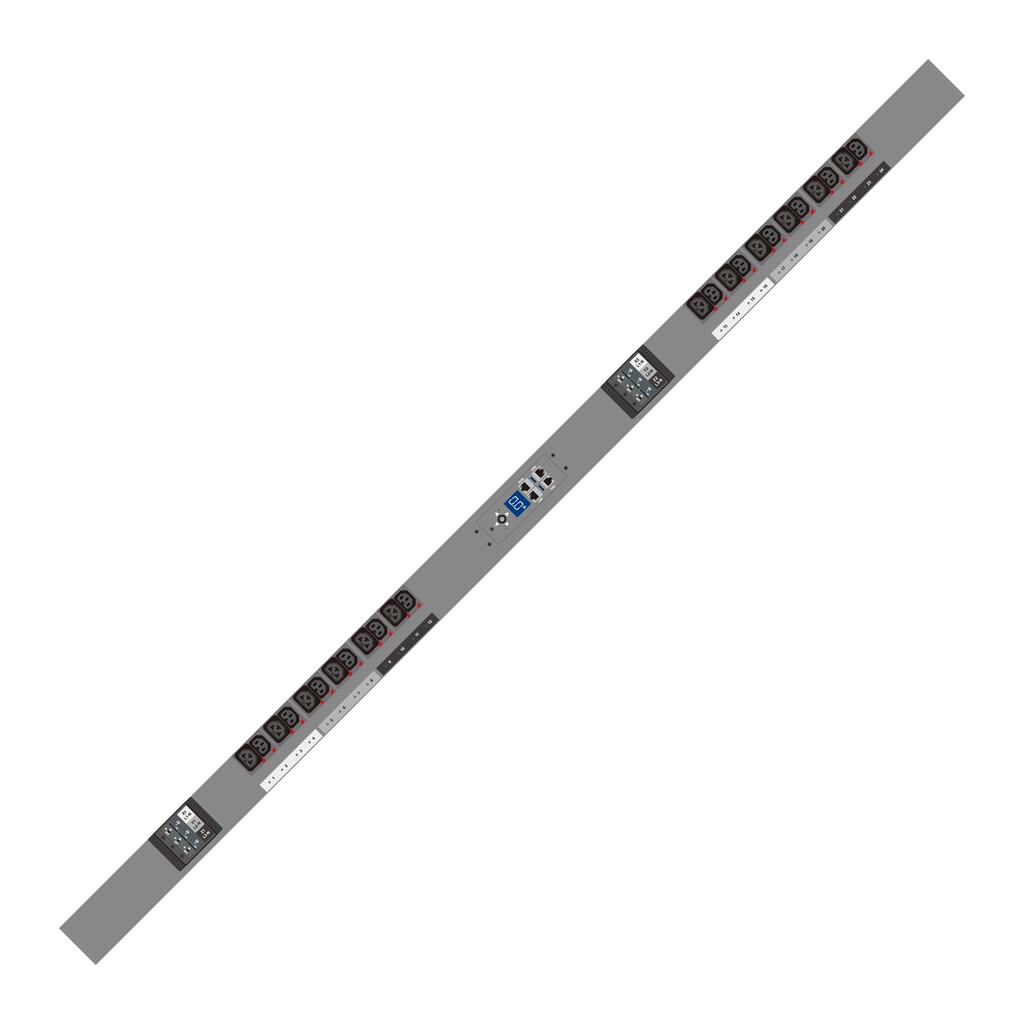

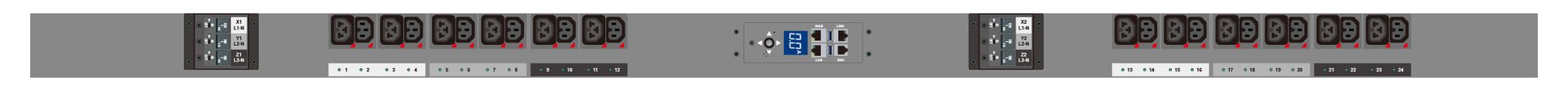

DPH3-24QL-96N#E
Smart 3-Phase PDU: Features XYZ phase balancing to prevent overloads, remote kWh power monitoring, and C39 self-locking outlets. Supports daisy-chaining 16 units via single IP.
| Voltage: 380~415V / 220~240V |
| Current: 16A |
| Socket: IEC 60320 C13+C39 |
| Socket / Number: 24 |
| Materials: Iron Case |
| Rack Form: 0U standard racks |
| Plug Type: Incoming Terminal |
Product Features
- Remote administrators can control remote power outlets via a web browser, eliminating the need for on-site operation.
- Remote administrators can monitor phase voltage, current, frequency, power factor, power, energy (kWh), outlet current, outlet power factor, outlet power (W), temperature, and humidity via a web browser.
- Configurable strong password protection and user access privileges, supporting Active Directory®, LDAP, and RADIUS protocols.
- Supports SSH, SSL, HTTPS, and TLS 1.2/1.3 protocols, with 2048-bit public key encryption.
- Event log capacity of 10,000 entries, recording user operations and alarm messages for future reference.
- Utilizes an IEC C13 and C19 hybrid C39 self-locking outlet design, compatible with C22 and C16 power cords, automatically locking the plug to prevent accidental disconnection (C39 models only).
- Up to 16 identical PDUs can be easily daisy-chained via a single IP address.
- Kilowatt Per Hour Monitoring.
- The color LCD panel allows users to view voltage, total current, branch current (applicable to 30/32A models), frequency, power factor, power, IP address, and (▲ temperature & humidity) via the five-direction navigation key.
- Configurable alarm thresholds for total current and branch current; the buzzer will sound when an alarm is triggered.
- Outlet control.
- LED indicators are provided to display the on/off status of each outlet.
- Supports power-on sequencing to prevent all outlets from turning on simultaneously, avoiding instantaneous overload that may affect equipment operation.
- Allows configuration of power-on delay and power-off delay times and supports scheduled power operation.
- Supports PING and TCP port detection functions. When the monitored device or application fails to respond, the system can be configured to reboot the connected device by cycling its power outlet.
- Supports Redfish API, allowing administrators to develop monitoring applications based on hardware functions.
- Supports Email and Pushover notification functions.
- Supports SNMP V1/V2c and V3, enabling monitoring of the rack monitoring host status through SNMP View software.
- Supports Syslog, allowing device data to be collected through a Syslog Server.
- Provides remote firmware upgrade capability.
- The color LCD display module supports 180-degree automatic screen rotation and allows replacement of the display module without power interruption (applicable to 0U models).
- Equipped with an overload protection circuit breaker to prevent equipment damage caused by current overload.
- WAN port: 100/1000 Mbps Ethernet.
- LAN port: 10/100 Mbps Ethernet.
- (▲) Optional external temperature and humidity sensor available.
Specifications
| Input Voltage | 380/415VAC Three-phase four wire +G |
| Maximum Input Current | 3-Phase 32A (maximum) |
Power Frequency | 50 / 60 Hz |
Plug Type | Incoming Terminal |
Input Power | 21120VA (220V) |
Socket Type | Total：24 C39 x 12 IEC 60320 C13 x 12 ------------------------------------------------- Branch：X1： 1- 4 x C39 (2) + IEC C13 (2) Branch：Y1： 5- 8 x C39 (2) + IEC C13 (2) Branch：Z1： 9-12 x C39 (2) + IEC C13 (2) Branch：X2：13-16 x C39 (2) + IEC C13 (2) Branch：Y2：17-20 x C39 (2) + IEC C13 (2) Branch：Z2：21-24 x C39 (2) + IEC C13 (2) |
Output Voltage | 220VAC (380V input) 230VAC (400V input) 240VAC (415V input) |
Max Output Current (Socket) | C39 : 16A (maximum) IEC 60320 C13 : 10A (maximum) |
Max Output Current (Circuit) | 16A (Maximum) |
Max Output Current (Total) | 96A (Maximum) |
Circuit Breaker | 16A Magnetic * 6 |
Power Monitor | Color LCD |
Metering Precision | Current Error Rate : ±1% |
| Materials | Iron Case / Digital Meter |
Dimension Unit : mm | 1778(H)*75(W)*65(D)(TBD) |
Temperature (Operating / Storage) | 0° - 45° C / 0° - 60° C |
| Humidity (Operating / Storage) | 0 - 90% No Condensation |

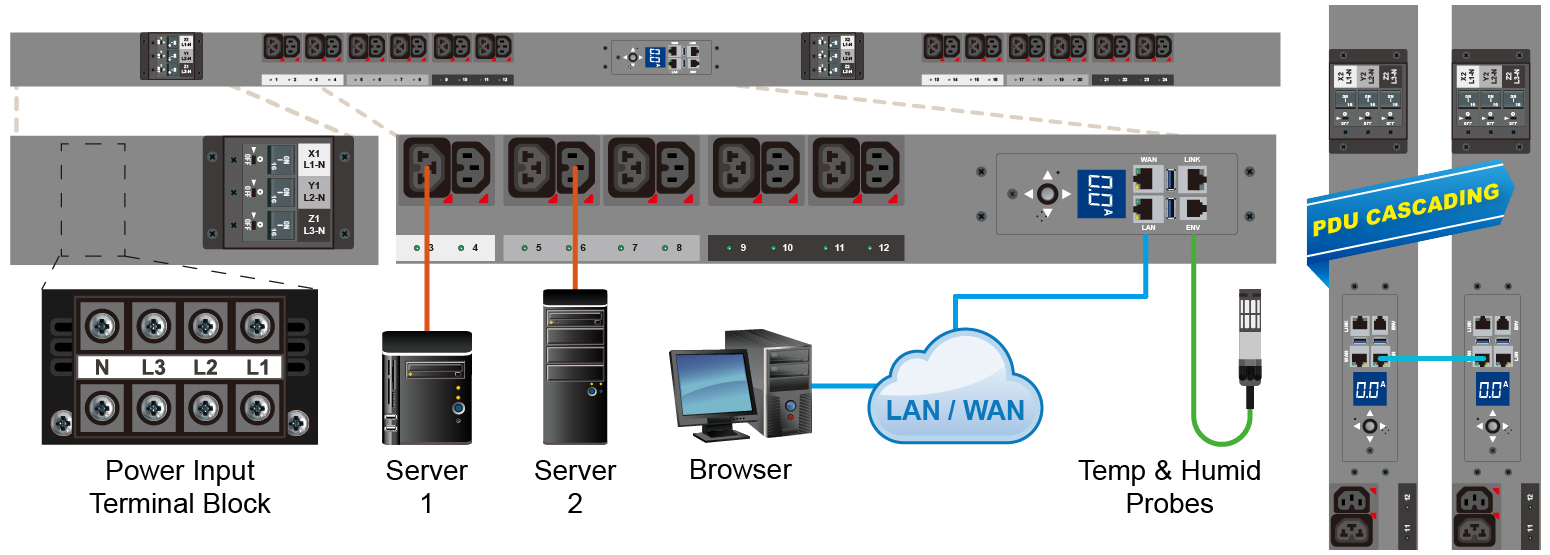

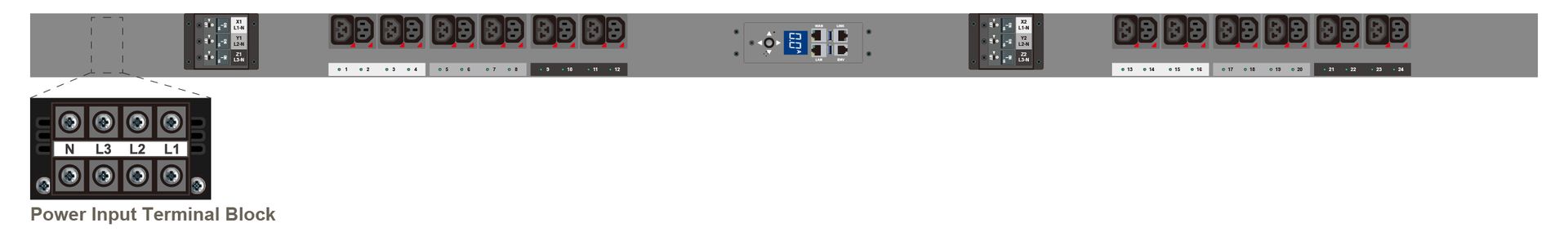

Diagram
