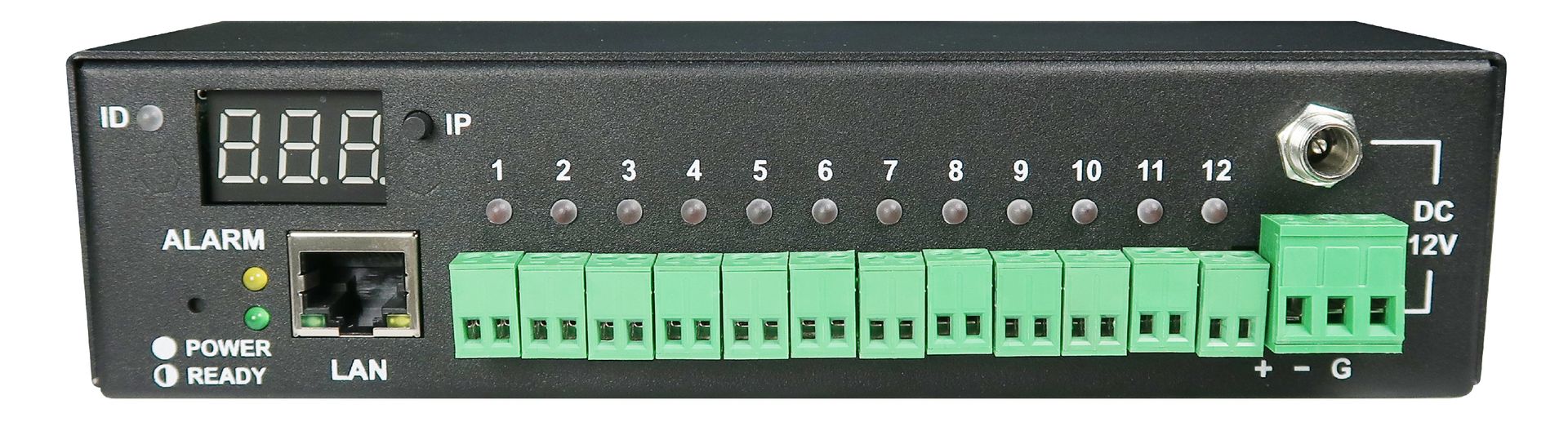

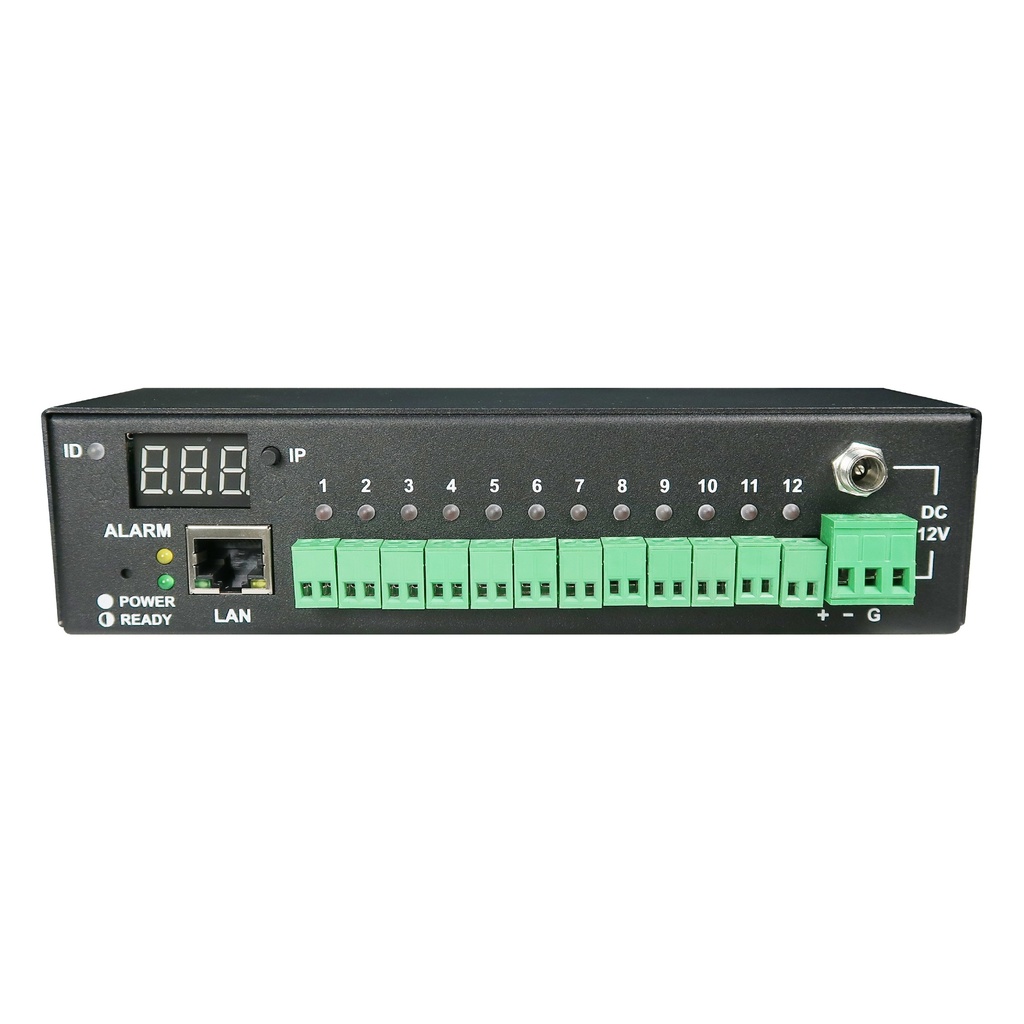

IC12DI
This intelligent environment monitoring solution supports dry contact and environmental sensor monitoring for real-time device and environmental status management. It features HTTP/HTTPS remote access, SNMP/SNMP Trap monitoring, and alarm notifications via Email, SMS, and multiple messaging platforms. With IP/MAC filtering, event logs, and online firmware upgrades, it enhances monitoring efficiency and security for data center applications.
| Socket: Dry contact |
| Materials: Iron Case |
| Rack Form: 19" standard racks (1U) |
| Input Power: 12 VDC |
Product Features
- Support Http/Https to allow administrator to set andread device status through browsers instead of checking at local site.
- Warning by Email and SMS for the real-time status monitoring of dry contact.
- Support SNMP. User can check device status via SNMP View.
- Support SNMP Trap to collect and view warning messages.
- Support IP and MAC filters to prevent unauthorized access to device.
- Record operations and warning messages for checking.
- Support online firmware upgrade.
- Standard rail installation or fixed by screws.
- Can work with iNotify-GA1000 server to send alarm messages by Mail, SMS, phone call, WeChat and Telegram.
Specifications
Input Power | 12 VDC |
Operating Temperature | 0 - 45°C |
Operating Humidity | 0 - 95% |
Storage Temperature | 0 - 60°C |
Dry Contact Input | 12 |
Dimension: mm | 176 x 58 x 44 mm (L x W x H) |

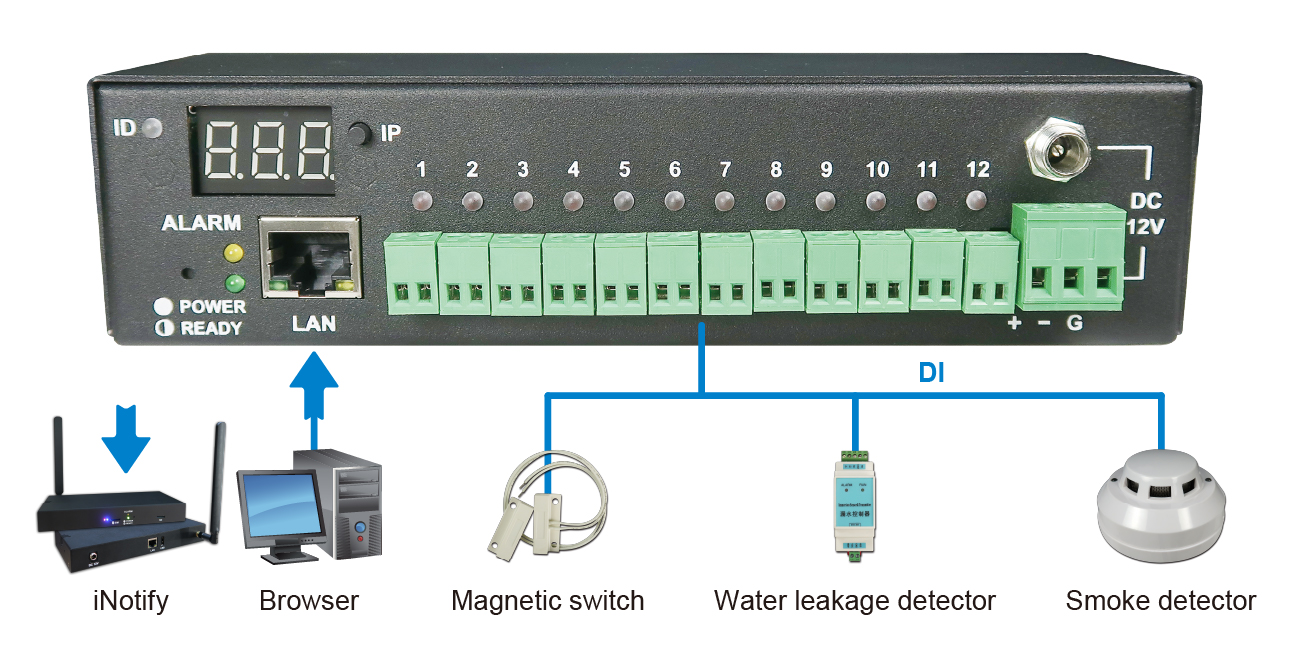

Diagram
DM
