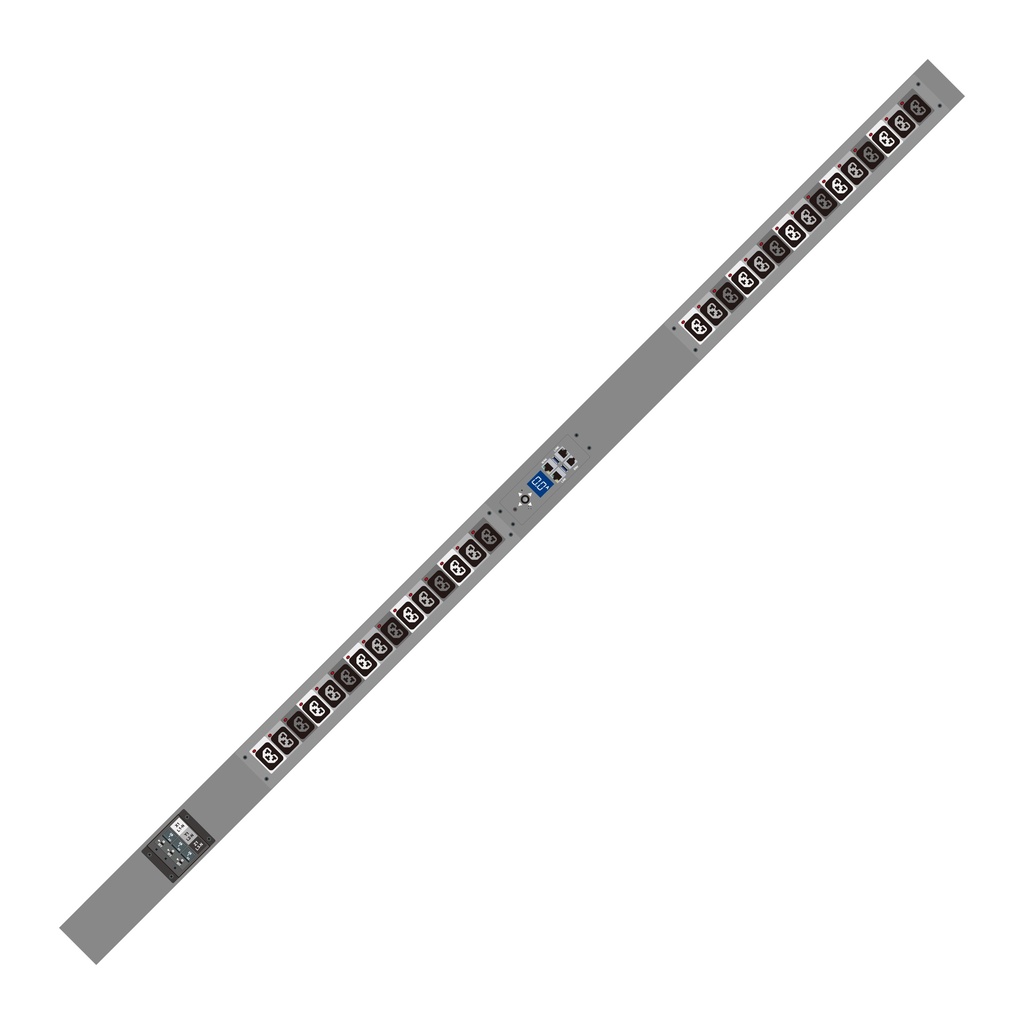

WP3-30C39-96N#E
Smart 3-Phase PDU: Features XYZ phase balancing to prevent overloads, remote kWh power monitoring, and C39 self-locking outlets. Supports daisy-chaining 16 units via single IP.
| Voltage: 380~415V / 220~240V |
| Current: 32A |
| Socket: C39 |
| Socket / Number: 30 |
| Materials: Iron Case |
| Rack Form: 0U standard racks |

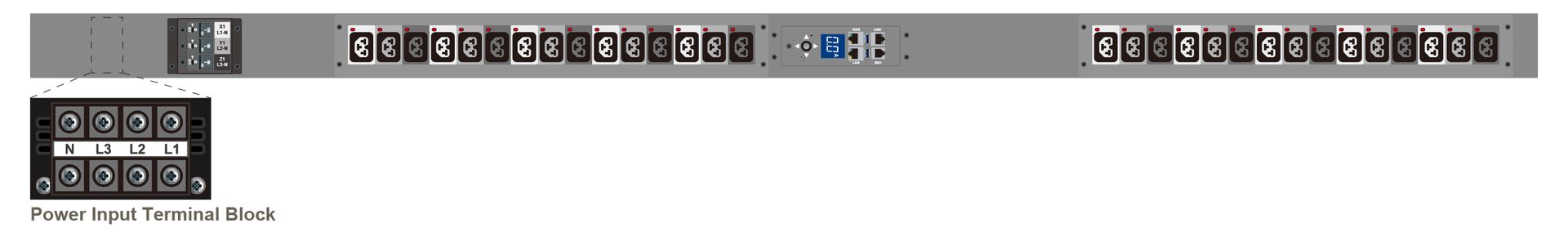

| Plug Type: Incoming Terminal |
Product Features
- Remote administrators can monitor power usage information through a web browser, eliminating the need for on-site personnel.
- Remote administrators can monitor phase voltage, current, frequency, power factor, power (W), energy (kWh), temperature, and humidity via a web browser.
- Configurable strong password protection and user access privileges, supporting Active Directory®, LDAP, and RADIUS protocols.
- Supports SSH, SSL, HTTPS, and TLS 1.2/1.3 protocols, with 2048-bit public key encryption.
- Event log capacity of 10,000 entries, recording user operations and alarm messages for future reference.
- Utilizes an IEC C13 and C19 hybrid C39 self-locking outlet design, compatible with C22 and C16 power cords, automatically locking the plug to prevent accidental disconnection (C39 models only).
- Phase sequence XYZ: Output outlets are arranged according to XYZ phase sequence, color-coded (black, gray, white) to balance current load across circuits and prevent overload caused by uneven distribution (WP3 series 0U C39 models only).
- Up to 16 identical PDUs can be easily daisy-chained via a single IP address.
- Kilowatt Per Hour Monitoring.
- The color LCD panel allows users to view phase voltage, total current, branch current (applicable to 30/32A models), frequency, power factor, power, IP address, and (▲ temperature & humidity) via the five-direction navigation key.
- Configurable alarm thresholds for total current and branch current; the buzzer will sound when an alarm is triggered.
- Supports Redfish API, allowing administrators to develop monitoring applications based on hardware functions.
- Supports Email and Pushover notification functions.
- Supports SNMP V1/V2c and V3, enabling monitoring of the rack monitoring host status through SNMP View software.
- Supports Syslog, allowing device data to be collected through a Syslog Server.
- Provides remote firmware upgrade capability.
- The color LCD display module supports 180-degree automatic screen rotation and allows replacement of the display module without power interruption (applicable to 0U models).
- Equipped with an overload protection circuit breaker to prevent equipment damage caused by current overload.
- WAN port: 100/1000 Mbps Ethernet.
- LAN port: 10/100 Mbps Ethernet.
- (▲) Optional external temperature and humidity sensor available.
Specifications
| Input Voltage | 380/415VAC Three-phase four wire +G |
| Maximum Input Current | 3-Phase 32A (maximum) |
Power Frequency | 50 / 60 Hz |
Plug Type | Incoming Terminal |
Input Power | 21120VA (220V) |
Socket Type | Total：30 C39 x 30 ------------------------------------------------- Branch：X1：C39 (10) Branch：Y1：C39 (10) Branch：Z1：C39 (10) |
Output Voltage | 220VAC (380V input) 230VAC (400V input) 240VAC (415V input) |
Max Output Current (Socket) | C39 : 16A (maximum) |
Max Output Current (Circuit) | 32A (Maximum) |
Max Output Current (Total) | 96A (Maximum) |
Circuit Breaker | 32A Magnetic * 3 |
Power Monitor | Color LCD |
Metering Precision | Current Error Rate : ±1% |
| Materials | Iron Case / Digital Meter |
Dimension Unit : mm | 1778(H)*76(W)*70(D)(TBD) |
Temperature (Operating / Storage) | 0° - 45° C / 0° - 60° C |
| Humidity (Operating / Storage) | 0 - 90% No Condensation |

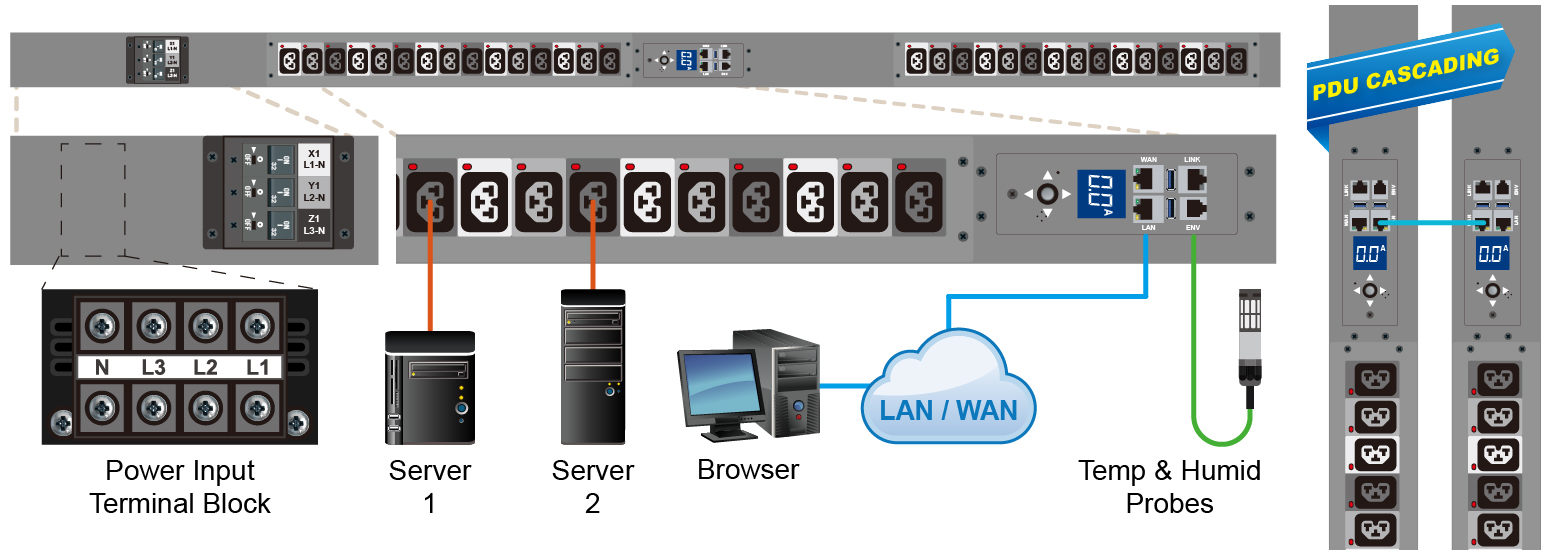

Diagram
DM
